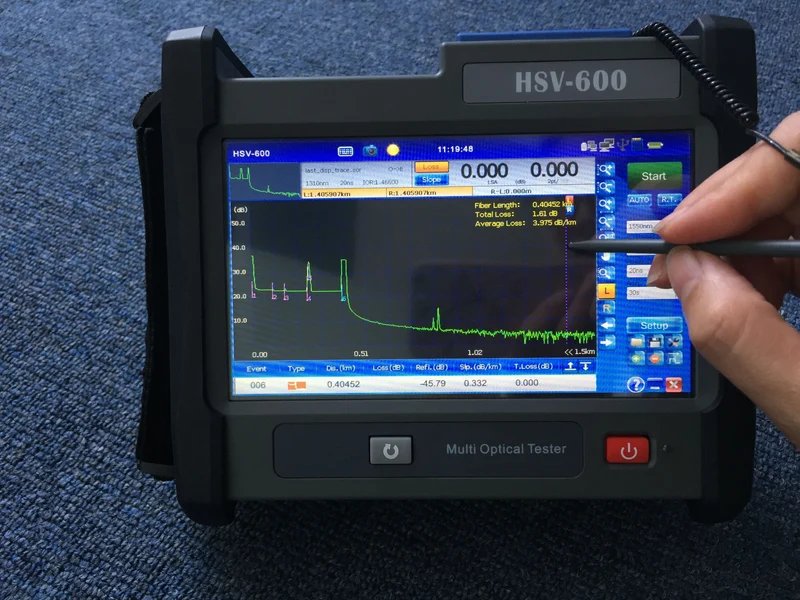

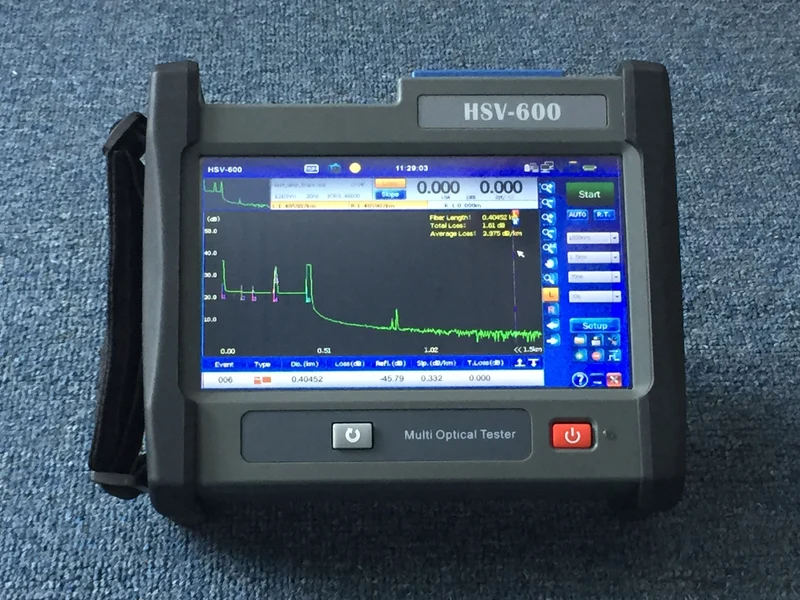

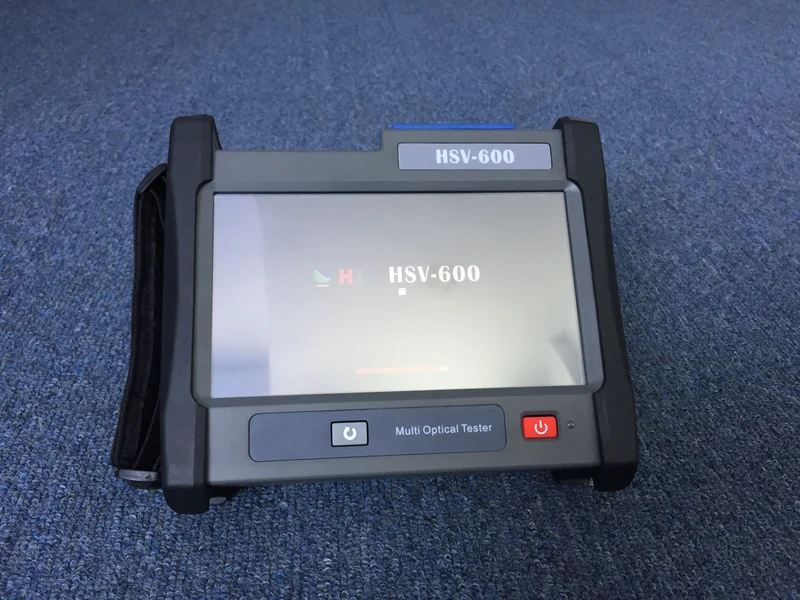

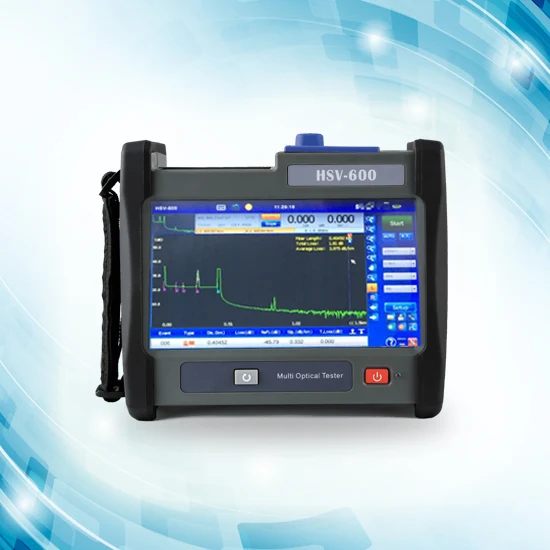

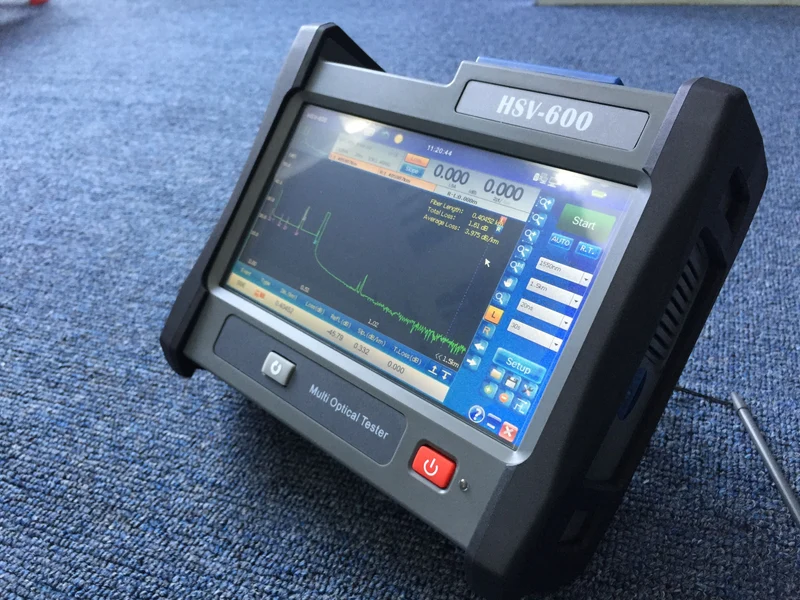

HSV-610 OTDR 1310/1550nm 32/30dB SM OTDR

TEKCN Fusion splicer StoreHSV-610 OTDR 1310/1550nm 32/30dB SM OTDR

* 7-inch full touchscreen; Professional and efficient UI (user interface) and UE (user experience)

* Handy, lightweight, fully functional, tablet-inspired design

* Excellent optical performance: Event dead zone: minimum 0.8m;

* Dynamic range: 32dB/3040dB

* Resolution with the shortest distance:5 cm

* 12-hour operating time

* Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe

Specifications

Model	HSV-610	HSV-620	HSV-630	HSV-630A/B/C	HSV-640
Wavelength(nm)	1310/1550	1310/1550	1310/1550	1310/1490/1550/1625/1650	1310/1550
Wavelength Accuracy(nm)	± 20
Dynamic (dB)	32/30	35/33	37/35	37/35/35	40/38
Event Dead Zone(m)	1.5	1	0.8	0.8	0.8
Atten. Dead Zone (m)	6	5	4	4	4
Pulse width	3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1µs, 2µs, 5µs, 10µs, 20µs
Distance range (km)	100m, 400m ,1.5km, 3km, 6km, 12km, 25km, 50km, 100km ,200km, 400km
Sampling resolution(m)	0.1(HSV-610/HSV-620),0.05(HSV-630/HSV-630A/HSV-640/HSV-670/HSV-680)
Sampling Points	128000		256000
Power Meter	Calibrated Wavelength: 1310nm/1550nm Working wavelength: 850nm/980nm/1300nm/1310nm/1490nm/1610nm Dynamic: -70dB~+10dB, ±0.17dB accuracy
VFL	650nm±10nm, 10mW
Fiber inspection probe	520X, USB 2.0
Stabilized light source	HSV-610/HSV-620:1310/1550nm, -11dBm; HSV-630/HSV-640/HSV-670/HSV-680:1310/1550nm, -4dBm; HSV-630A/B/C: 1310/1490/1550/1625/1650nm, -4dBm
Display	7 in (178 mm) outdoor-enhanced touch screen, 800 x 480 TFT

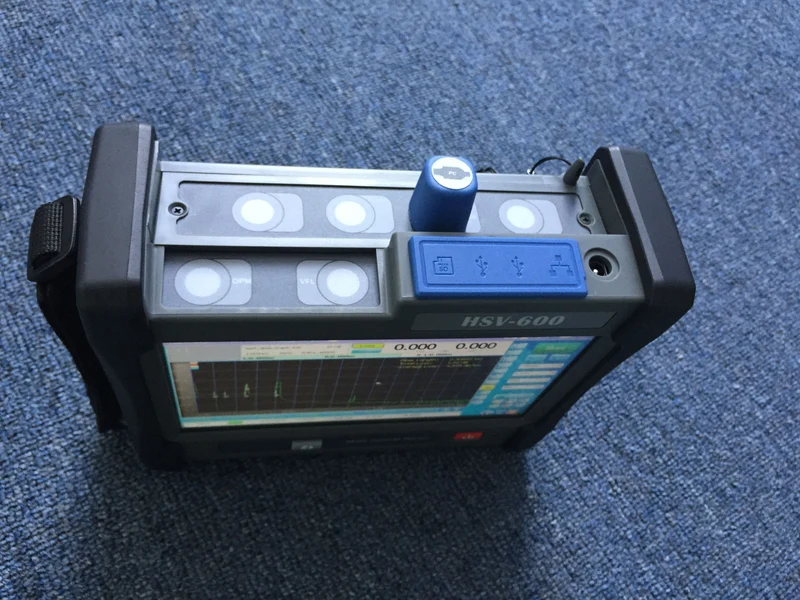

Interfaces	USB 2.0 ports RJ-45x1 x2; LAN ,10/100 Mbit/s, Macro SD x1
Storage	8 GB internal memory (80 000 OTDR traces), 8 GB SD card (80 000 OTDR traces)
Battery Life	7.4 v,5300mAh lithium battery pack,39.22Wh supports 12 hrs, continuous (at max charge)
Power supply	Power supply AC/DC adapter, AC input 100-240 V, 50-60 Hz,  DC out 12V,1.5A
Applicable environment	Operating temperature:-10℃—+50℃,storage temperature:Relative humidity:0%-95%
Dimensions (WxHxD)	196*172*72mm
Weight(including battery)	<1.5kg
Language	Chinese, English, Spanish,Russian,Italian,Portuguese,(option for French, Russian, German, Korean & Arabic)

--------------------------------------------------------------------------------------------------
We keep lots in stock, If you need more, please contact us directly!

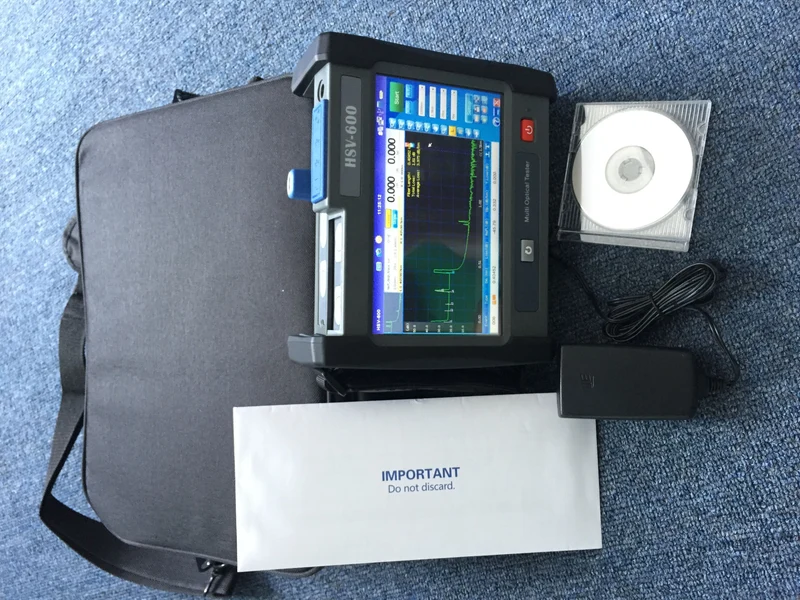

Condition:  - Brand New . Warranty Service ：   - 12 months . Package includes:  - standard package with accessories,  in carton.
