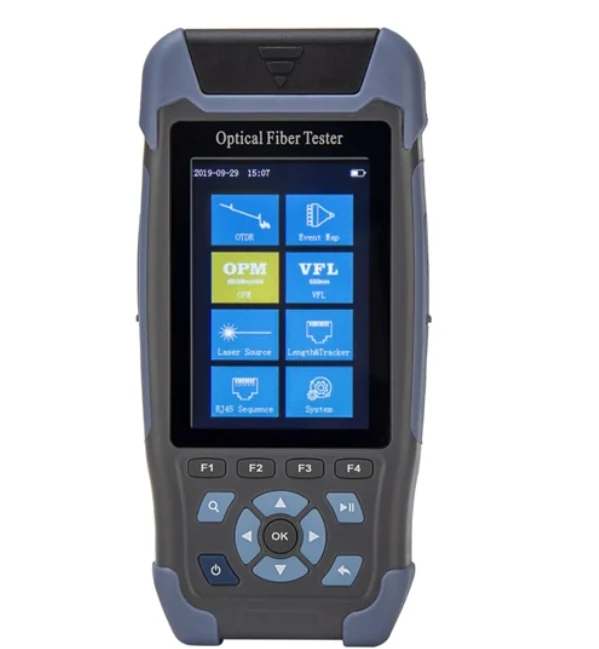

SM OTDR TEKCN TC3200S Mini OTDR 1550nm 22dB with power meter & light source & VFL

TEKCN TC-3200 Mini-Pro OTDR with power meter & light source & VFL

The TC300 Optical Time Domain Reflectometer is a high-performance, multi-functional test instrument designed for the FTTx network.

Functions:

OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight

Technical Specifications

TEKCN Mini-Pro OTDR
Model	TC3200S	TC3200D
Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Fiber Type	G.652
Dynamic Range	22dB	24dB/22dB
Event Blind Zone	3m
ATT Blind Zone	8m
Test Range	500m~60km
Pulse Width	3ns~10us
Ranging accuracy	±（1m+ Sampling interval +0.005％×Test distance）
Loss accuracy	±0.05dB/dB
Sampling Points	16k~128k
Sampling resolution	0.05m~8m
Reflection accuracy	±3dB
Data Storage	Internal：≥600；External：TF Card
Laser Safety Level	Class Ⅱ
File format	SOR Standard file format
Connector	FC/UPC（Interchangeable SC、ST）
OPM
Wave Range	800nm~1700nm
Interface Type	Universal Joint FC/SC/ST
Test Range	-50dBm～+26dBm
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration wavelength	850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type	FP-LD
Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW，±0.5dB/15min （Test after 15 minutes of preheating）
Connector	FC/UPC（Interchangeable SC、ST）
VFL
Wavelength	650nm±20nm
Output Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	FC/SC/ST
RJ45 Cable Length Measurement
Test Range	300m
Other Parameters
Display	3.5 inch Color LCD
Data Interface	Micro USB
External storage	TF Card
Power Supply	Polymer Li-Battery：3.7V，4000mAh Adapter：5VDC，2A
Battery Life	Standby＞20h；Measuring time＞12h
Operating Temperature	-10℃～+50℃
Storage Temperature	-40℃～+70℃
Relative Humidity	0～95％Non Condensing
Size	173mm×82mm×37mm
Weight	≤350g
Functions: OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight

Note:

1Test temperature is 25℃+2℃, maximum pulse width, the average time is more than 3 minutes.

2Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), typical value.

--------------------------------------------------------------------------------------------------
